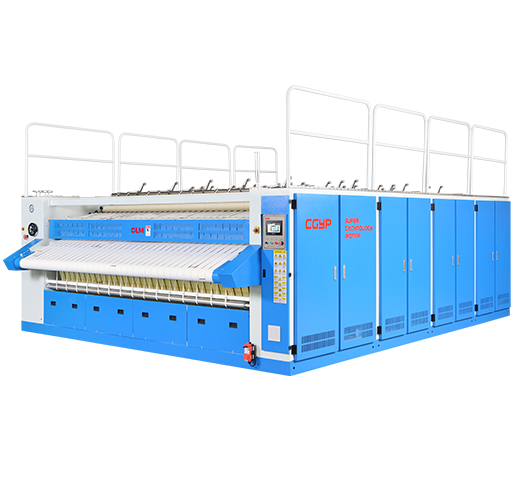

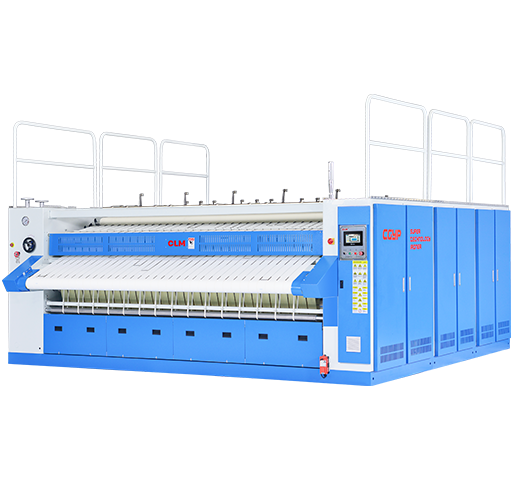

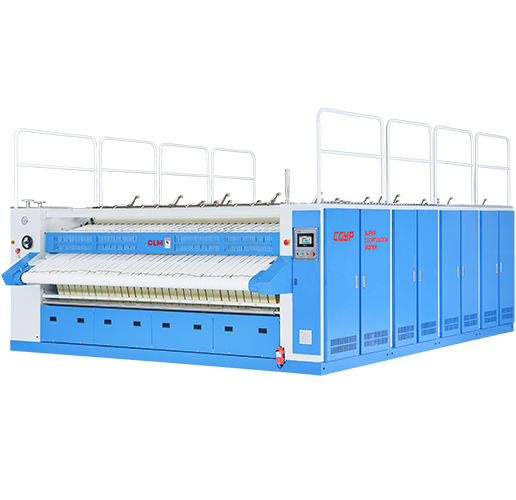

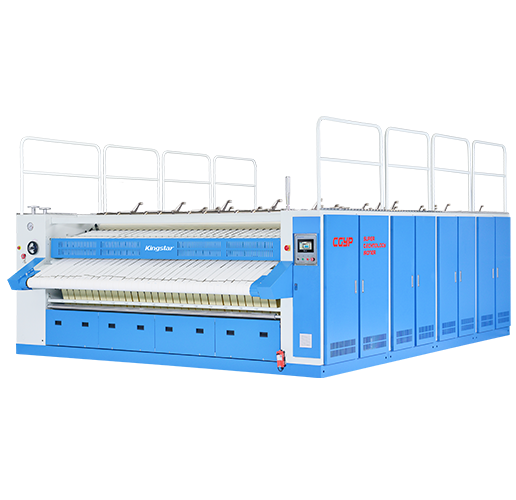

CGYP-650系列超级辊式熨平机
CGYP-650系列超级辊式熨平机

CGYP-650 Series Super Speed Roller Ironer

Product overview

Low energy consumption --- The water content is within 40%, the steam consumption of the sheets is about 270 kg/h, and the power consumption is about 3 Kwh/hour; the efficiency is high-it is combined with the CLM high speed feeder and folder.

Application industry

Hotel Laundry
Hospital Laundry
Product Video

Technical Characteristics

  • Patent

    The first 3 national patents in China, underwritten by Ping An Property Insurance

  • Energy Efficiency

    High Speed-Maximum Speed can reach 60m/min.Low energy consumption --- The water content is within 40%, the steam consumption of the sheets is about 270 kg/h, and the power consumption is about 3 Kwh/hour; the efficiency is high-it is combined with the CLM high speed feeder and folder. It can deal with 1200pcs bed sheets or 750pcs duvet covers per hour

  • Drum

    The heating drum is made of boiler carbon steel, which has higher pressure and thickness than stainless steel. The surface  is grinded and polished which has highly improved the ironing flatness and quality

  • Insulation Design

    The two ends of the drum, around the box, and all steam pipelines have been insulated to prevent heat loss, which reduces the steam consumption by 5%

  • PLC

    Mitsubishi PLC control system, programmable design, according to the ironing machine's working time schedule,you can freely set the steam supply time of the ironing machine such as working , noon break, and off work. Effective management of steam can be implemented. Steam consumption effectively reduced by nearly 25% compared to normal ironer

  • Double-face ironing

    3 sets drums all use double-face ironing design, which improve the ironing quality

  • No Guide Belts

    Some of the drums use none guide belts design,which eliminate the dents on the sheets and improve the ironing quality

  • Tightening Function

    All ironing belts have a tension function, which can automatically adjust the tension of the ironing belts， improve the quality of ironing

  • Structure Design

    The whole machine adopts a heavy mechanical structure design, and the weight of the whole machine reaches 11 tons

  • Guide Roller

    All guide rollers are all processed by high-precision special steel pipes, which ensure that the ironing belts do not run off, and at the same time ensure the quality of ironing

  • Quality Ensurance

    Main Electrical components,Pneumatic components,transmission parts,ironing belts, drain valves all used high quality imported brands

High Speed

CLM洗衣笼密封性能性好，有效保证不漏水、运行噪音低

Flat Ironing

装料口设置在地面70CM高的距离，实现轻松装料，人性化设计。

Running Smoothly

所有电器、气动元件均采用德国、日本品牌。

Energy Efficiency

洗衣笼内筒采用4mm厚度不锈钢，比欧洲其他品牌材料更厚更坚固。

Technical Parameter

Product manual
