ZTZD枕套功能型系列
ZTZD枕套功能型系列

ZTZD Mutli-stackers Pillowcase Folder

Product overview

CLM pillowcase folder is a multifunctional folder, which not only can fold bed sheet, duvet but also can fold and stack pillowcases.Each hour capacity can reach about 3000 pieces

Application industry

Hotel Laundry
Hospital Laundry
Product Video

Technical Characteristics

  • Patent

    6 national patents in China

  • PLC

    The precise folding requires precise control. The CLM folder uses the Mitsubishi PLC control system,  7 -inch touch screen, and stored more than 20 folding programs and 100 customer information. Equipped with Internet functions such as remote fault diagnosis, failure exclusion, and program upgrade

  • Software Communication

    CLM Folder can communicate with feeder and ironer to realize software and program communication

  • Multifunctional

    CLM pillowcase folder is a multifunctional folder, which not only can fold bed sheet, duvet but also can fold and stack pillowcases

  • Folding Types

    CLM Pillowcase folder has two pillowcase folding types, 2 longfolds or one longfold and one crossfold

  • Stacking and Conveying Function

    CLM pillowcase folder not only has bed sheets and duvet stacking function, also have automatic stacking and conveying pillowcases function.Not need the operators running here and there to get the pillowcases, reducing labor intensity and increase automation

  • Efficient

    Pillowcase automatically folding and stacking, each hour capacity can reach 3000 pieces


  • Longfold Function

    CLM high speed folder has 2 longfold and 3 crossfold, the maximum folding size is 3300mm. Longfold is finished by air blowing, the air blowing time can be set based on different material and thickness linen to ensure the perfect folding quality

  • Crossfold

    CLM high speed folder has 3 crossfold,crossfold maximum folding size is 3600mm,even large size sheets can be folded well.3 crossfold all finished by folding knife to ensure the flatness and quality

  • Quality Ensurance.Quality Ensurance

    All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands

High Speed

CLM洗衣笼密封性能性好，有效保证不漏水、运行噪音低

Flat Ironing

装料口设置在地面70CM高的距离，实现轻松装料，人性化设计。

Running Smoothly

所有电器、气动元件均采用德国、日本品牌。

Energy Efficiency

洗衣笼内筒采用4mm厚度不锈钢，比欧洲其他品牌材料更厚更坚固。

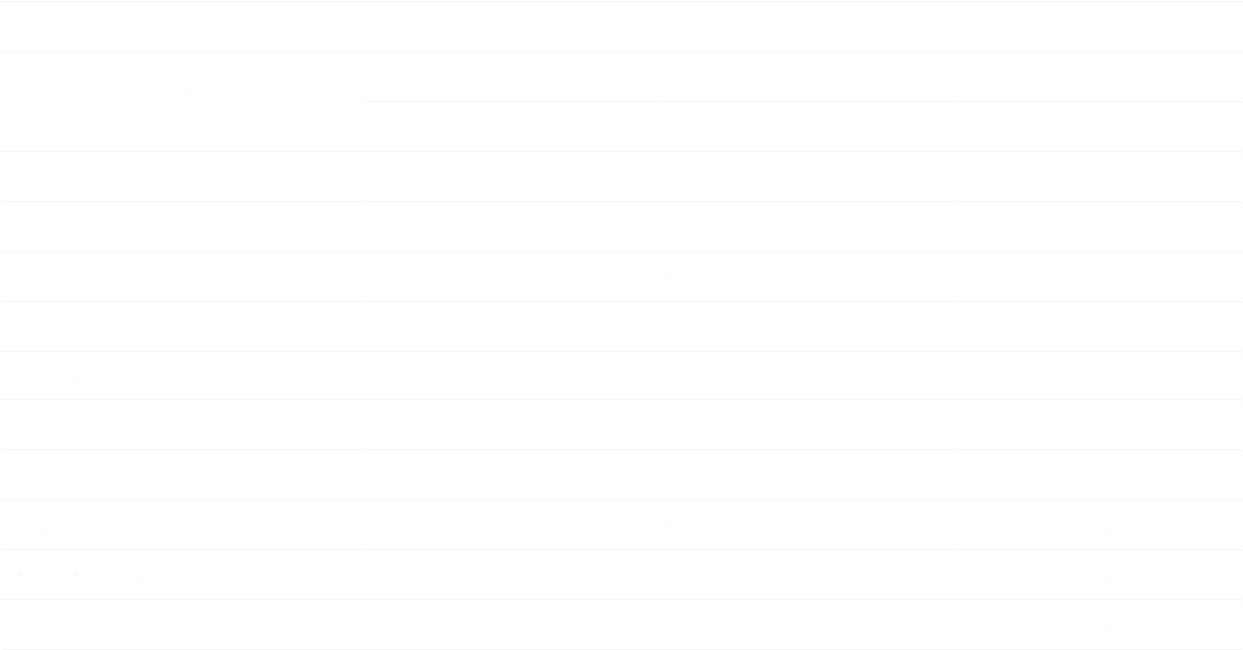

Technical Parameter

Product manual
