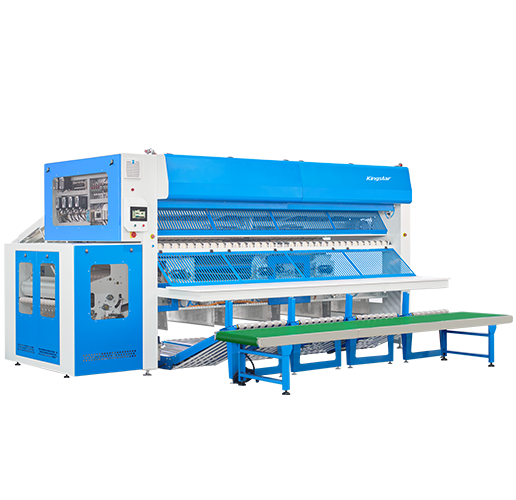

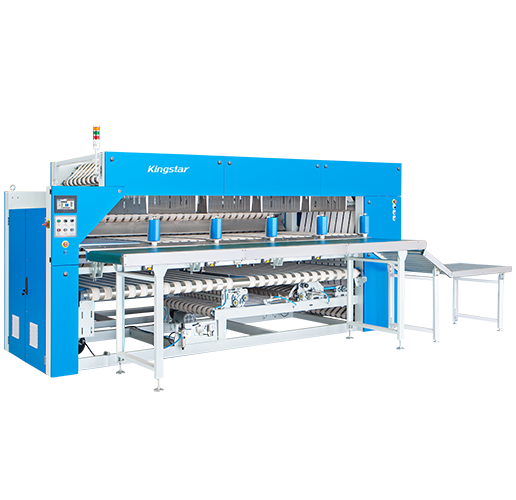

FZD Automatic Sorting Folder

Product overview

CLM automatic sorting folder has 3 crossfold,crossfold maximum folding size is 3600mm,even large size sheets can be folded well.3 crossfold all finished by folding knife to ensure the flatness and quality

Application industry

Hotel Laundry
Hospital Laundry
Product Video

Technical Characteristics

  • Patent

    The first 5 nationl patents in China

  • High SpeedHigh Speed

    Maximum Speed can reach 60m/min

  • Running Smoothly.Running smoothly

    the probability of jamed linen is extremely low, even if it is blocked, the blocked sheets can be taken out within 2 minutes

  • Good Stability

    the whole machine rigid, the accuracy of the transmission component is very high, all parts are used high quality imported parts

  • Save Labor Cost

    Automaticlly sorting different size sheets and stacking them on different stackers to reduce a lot of labor work

  • PLC

    The precise folding requires precise control. The CLM folder uses the Mitsubishi PLC control system,  7 -inch touch screen, and stored more than 20 folding programs and 100 customer information. Equipped with Internet functions such as remote fault diagnosis, failure exclusion, and program upgrade

  • Software Communication

    CLM Folder can communicate with feeder and ironer to realize software and program communication

  • Automatic Sorting

    CLM automatic folder can maximum have 5 stackers to sort 5 different sizes sheets on these stackers, even with high speed working speed, only need one person to finish the packing work

  • Conveyor

    CLM automatic folder is equipped with conveyor at behind,this conveyor can transfer the stacking sheets to the packing machine, which increase the working efficiency

  • Air cylinder Design

    According to adjust the air cylinder action time and position to control the stacking accuracy

  • Longfold

    CLM high speed folder has 2 longfold and 3 crossfold, the maximum folding size is 3300mm. Longfold is finished by air blowing, the air blowing time can be set based on different material and thickness linen to ensure the perfect folding quality

  • Crossfold

    CLM high speed folder has 3 crossfold,crossfold maximum folding size is 3600mm,even large size sheets can be folded well.3 crossfold all finished by folding knife to ensure the flatness and quality

  • MechanicalFolding Knife

    Special folding knife design can finish two folds by one action, not only prevent static electricity, but also achieve high speed folding efficiency

  • Air Cylinder Design

    The third crossfold section set two air cylinders on both sides of the axis, if any sheet blocked here, the two axis will automatic separated,operator can easily take out the blocked sheets

  • Open Structure Design

    The 4th and 5th folds are open structure design, conveniently to see and deal with any problem

  • Frame Structure

    The frame structure of the CLM high speed folder is welded as a whole, and each long axis is precisely processed

  • High Efficiency

    Maximum Folding Speed can reach 60m/min, maximum capacity can reach 1200pcs bed sheets

  • Quality Ensurance

    All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands

High Speed

CLM洗衣笼密封性能性好，有效保证不漏水、运行噪音低

Flat Ironing

装料口设置在地面70CM高的距离，实现轻松装料，人性化设计。

Running Smoothly

所有电器、气动元件均采用德国、日本品牌。

Energy Efficiency

洗衣笼内筒采用4mm厚度不锈钢，比欧洲其他品牌材料更厚更坚固。

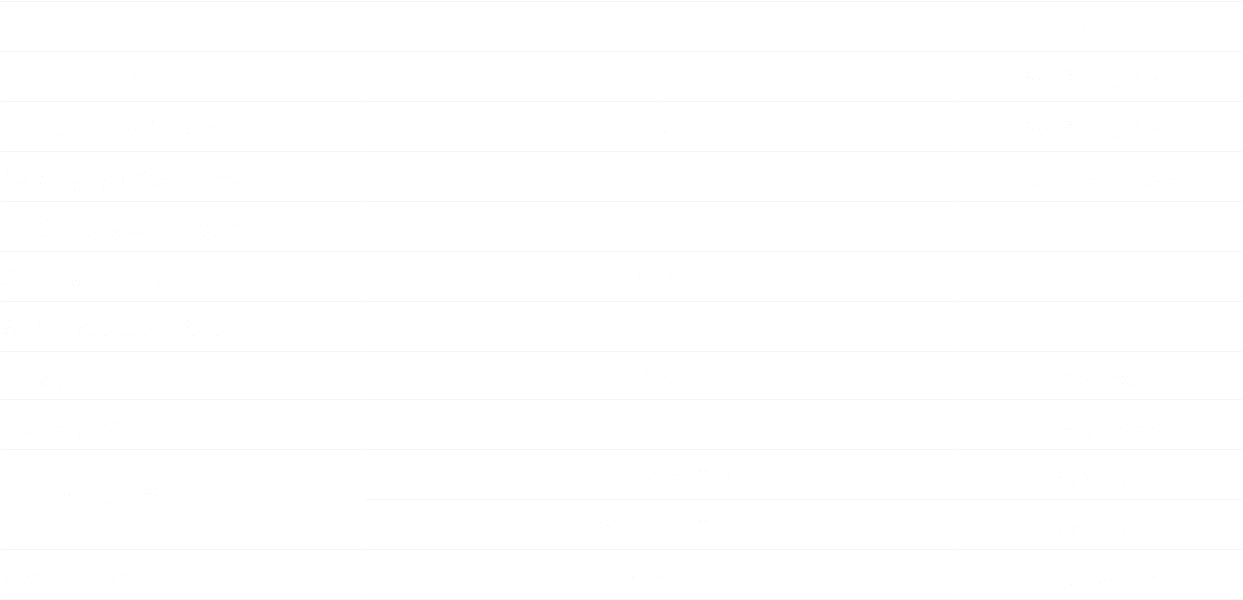

Technical Parameter
