GZB单通道系列展布机
GZB单通道系列展布机
GZB单通道系列展布机
GZB单通道系列展布机

GZB Series High Speed Automatic Feeder

Product overview

Combine with CLM high speed ironer and folder to be a complete super speed ironer line, which can deal with 1200 pieces bed sheets

Application industry

Hotel Laundry
Hospital Laundry
Product Video

Technical Characteristics

  • Statistical function

    Each station has the statistical function of investment, and accurately measures the number of sheets, which is convenient for operators to manage

  • Software Communication

    CLM high speed folder and CLM high speed feeder, high speed ironer can achieve program linkage function

  • Air duct structure

    The special air duct structure design, the sheets which be sucked into the box can shaking by air blowing to improve the flatness

  • the maximum feeding size

    Huge size sheet can smoothly suction into the suction box and the maximum sheet size can reach 3300x3500mm

  • Suction Fan Power

    The minimum power of the suction fan is 750W, and it can also be equipped with 1.5kW and 2.2KW fan

  • Fast and Efficient

    4 stations feeding sheets at the same time,each station has two sets of feeding clamps, the working efficiency is very high

  • Manual Feeding Function

    Designed with manual feeding function, which can realize the feeding of bed sheet, duvet cover,table cloth,pillowcase, small linen,etc

  • Heavy Sheets anti-drop function

    Heavy sheets anti-drop function to smoothly feeding large and heavy sheets

  • Guide Rail Design

    High SpeedThe guide rail mold is squeezed and molded, the accuracy is high, the surface is treated with special wear resistance, the connecting clip runs smoothly on the track, and the speed is fast

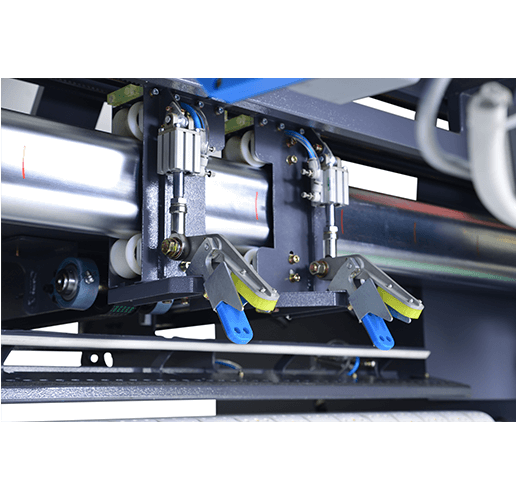

  • Spreading Clamps

    The wheels of spreading clamps use special imported material which ensure long service life

  • Frame Structure

    The frame structure of the CLM automatic feeder is welded as a whole, and each long axis is precisely processed

  • Shuttle Plate

    The shuttle plate is controlled by a servo motor, with high accuracy and fast speed.Not ong feeding bed sheet at high speed, but also can feeding duvet cover at low speed

  • Feeding Speed

    Maximum Feeding Speed can reach 60m/min, each hour can feeding 1200 pcs bed sheets

  • Quality Ensurance.Quality Ensurance

    All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands

  • PLC Control System

    S.iron uses a modern PLC control system and a 10 -inch color touch screen. Programming and operations are easy to get started. It can fully control the ironing parameters, including ironing speed,chest temperature, and air cylinder pressure. The system provides up to 100 custom ironing programs to meet the ironing requirements of special linen

  • Chest Position Correction System

    Pressure is the key point to ensuring the continous good quality ironing performance.  This machine uses adjustable pressure to meet the special ironing needs of different types of linen. At the same time, the chest calibration system ensures that the pressure on the surface of linen is uniform. According to different types of linen, the ironer can always ensure the best ironing quality

  • Insulation Design

    The ironing machine uses the thermal insulation board for insulation construction, reducing the loss of heat while greatly improving the heat utilization and production efficiency, and creating a comfortable working environment. This good insulation material ensure the motor and electrical components work at a safe temperature, which greatly extends the service life of the motor and accessories

  • Direct Motor Drive

    The steam heating chest is directly driven by an independent motor, without a belt or other dangerous power transmission device, each motor with a inverter,and the speed of each roller is controlled by an advanced electronic method

  • Maintenance-free

    No belt, chain wheel, chain, and lubricating fat directly eliminate the occurrence of maintenance and failure, so the CLM-TEXFINITY chest driving unit has the characteristics of free adjustment and maintenance-free

  • Powerful Moisture Suction System

    S.iron has a powerful, modular moisture suction system, which is closely related to the evaporation of water, so you need to install an independent suction motor on each roller. It has big impact on the ironing speed of ironer

  • Belt Tensioner

    The ironing belts use the hinge type tensioner, which can be installed in front or behind the steam vents of ironer, which is convenient for maintenance on the top of the ironer. You can also choose an automatic mobile system (ATLAS) to eliminate the dents of belts on linen and improve the quality of ironing. The belts tensioner can be used with the scraper system installed on the last roll to completely eliminate the dents on the linen

  • Sheets corners flattening device

    As an option, we set up a device for flattening the corners of sheets at the end of the entrance of the feeding platform to perfectly eliminate the wrinkles

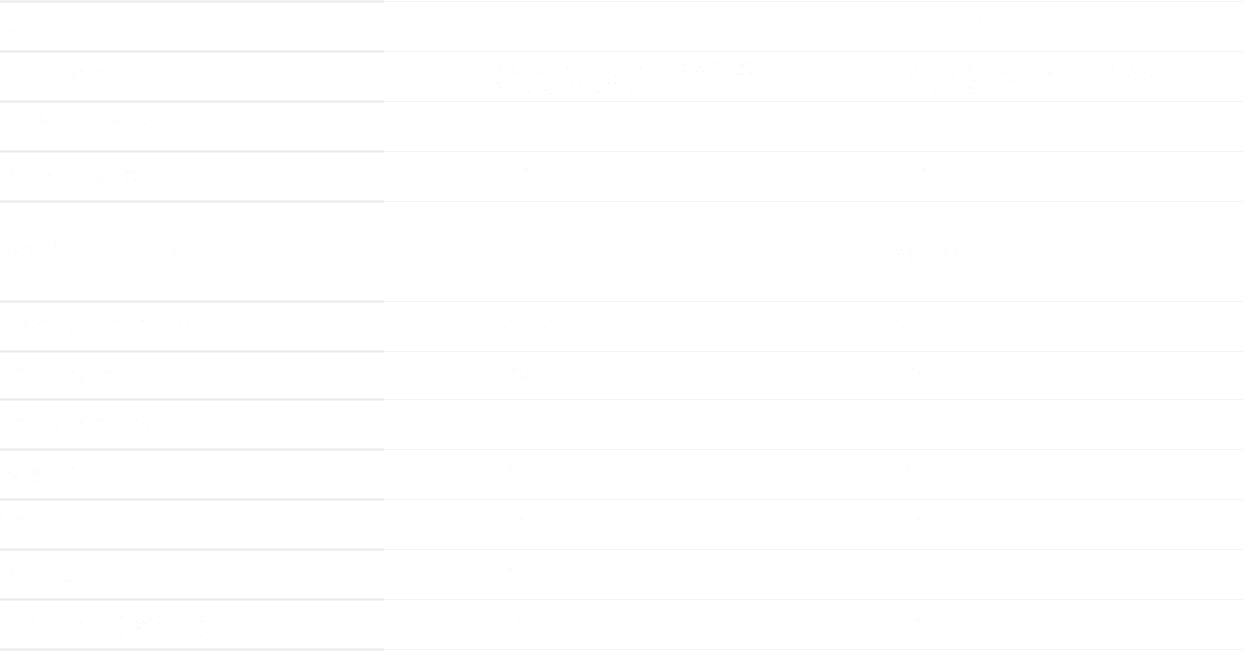

Technical Parameter

Product manual
