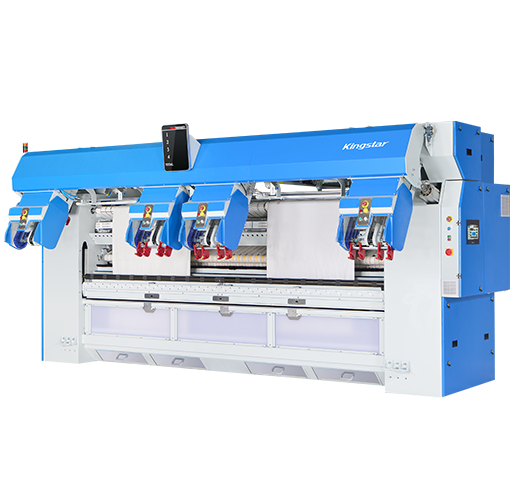

Mainly designed for hospital, railway Industry which have small size sheets. This feeder can feeding 2 sheets at same time and improve the working efficiency double times.
6 national patents in China-The first 6 national patents in China
Software Communication Function
Combine with CLM high speed ironer and folder to be a complete super speed ironer line, which can deal with 1600 pieces small size bed sheets
Statistical function
Adopt 10 inch HMI and PLC control,each station has the statistical function of investment, and accurately measures the number of sheets, which is convenient for operators to manage
Fast and Efficient

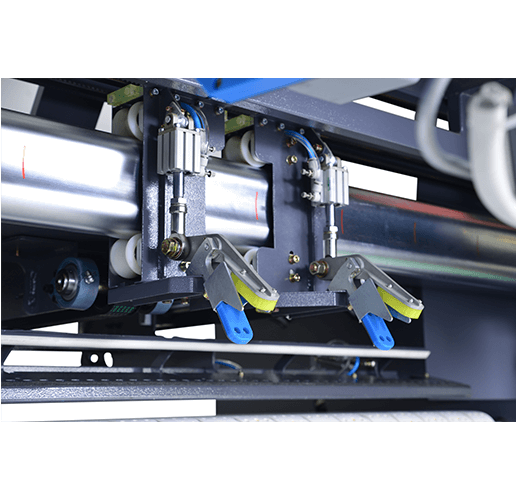

4 stations feeding sheets at the same time,each station has two sets of feeding clamps, the working efficiency is very high
Flat function
With sheet suction and flat function, which can improve the bed sheet flatness
Manual Feeding Function
Designed with manual feeding function, which can realize the feeding of bed sheet, duvet cover,table cloth,pillowcase, small linen,etc
Inveter Control
Feeding Speed uses variable frequency control to adapt to the ironing process and speed of different type of linen
